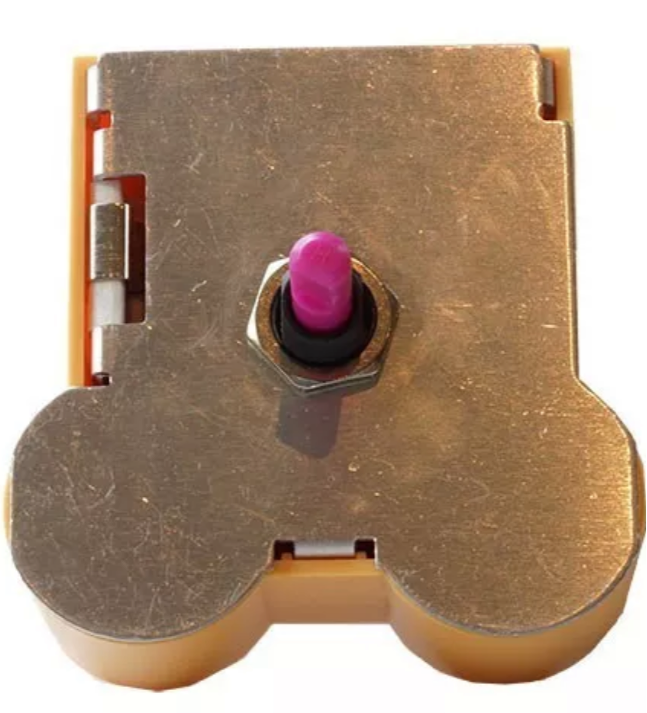

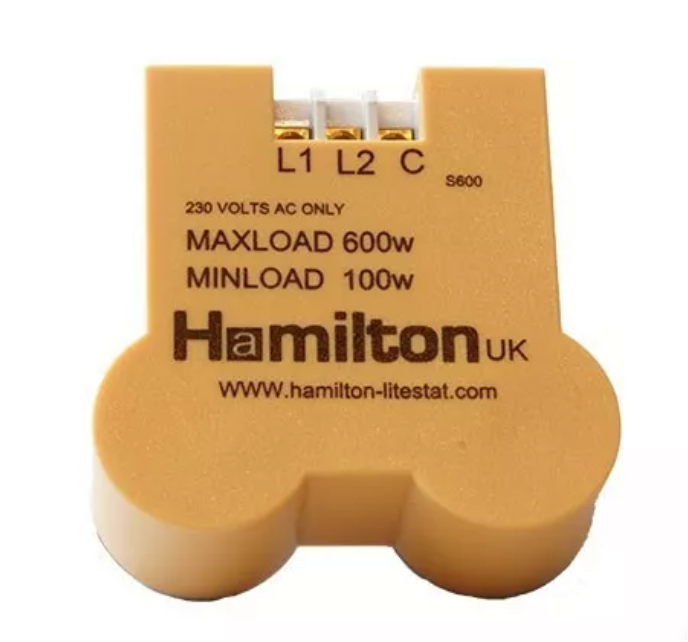

Hamilton 100w - 600W 2 Way Leading Edge Push Dimmer Module
Hamilton 100w - 600W 2 Way Leading Edge Push Dimmer Module
Regular price
£17.98 GBP
Regular price
Sale price
£17.98 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Leading Edge push on/off resistive dimmer module
- Wattage: 600 W
- Current rating: 2.5 A
- Voltage: 220/250 V AC
- Ways: 2 Way
- Minimum load: 100 W
- Maximum load: 600 W resistive
- Switched poles: Single
- Tungsten filament GU10 lamps must be branded with a fuse base
- When using mains voltage halogen lamps, dimmers should be de-rated by 25%
- When dimming LED lamps, dimmers should be de-rated by 75%
- For further information on compatibility, please contact Hamilton's Technical department
- Minimum wall box depth: 35 mm
- IP rating: IP2XD
- Ambient operating temperature: -5 to +40 °C
- Internal Use Only
- Maximum installation altitude: 2,000 m
- Terminal capacity:
- 2 x 1 mm²
- 2 x 1.5 mm²
- Earth terminal capacity:
- 5 x 1 mm²
- 4 x 1.5 mm²
- 3 x 2.5 mm²
- 1 x 4 mm² Multi-strand
- 1 x 6 mm²
- BS EN ISO standard(s): BS EN 60669-2-1
